Case Overview
The Heidelberg Speedmaster CD74 is a flagship B2-format sheetfed offset press, celebrated for its exceptional versatility, high-speed performance, and robust build – making it a cornerstone for commercial printers, packaging producers, and label manufacturers worldwide. Available in C-format (530mm × 740mm) and F-format (605mm × 740mm) configurations, this press supports 4–10 color groups with optional perfecting and coating modules, catering to short-run customization and long-run productivity alike. With a maximum straight printing speed of 18,000 sheets/hour and compatibility with substrates from 0.03mm thin films to 0.8mm thick board, the CD74 is designed for peak flexibility.
However, most legacy CD74 presses rely on traditional UV curing or powder drying systems, which fail to keep pace with modern printing demands. As a specialized China UV LED Curing System manufacturer
with deep expertise in Heidelberg press retrofits, JP has engineered a tailored solution – the JP UV LED Curing System – that seamlessly integrates with the CD74’s structural design. This retrofit requires no major modifications to the press’s core components, while unlocking unprecedented efficiency, cost savings, and print quality. Below is a detailed breakdown of the adaptation plan, technical parameters, and tangible benefits.
Heidelberg Speedmaster CD74: Key Specifications & Pain Points
Core Technical Parameters of CD74
Parameter | Details |
Printing Format | C-format: 530mm × 740mm; F-format: 605mm × 740mm (max printing area: 510mm×740mm / 585mm×740mm) |
Maximum Printing Speed | 15,000–18,000 sheets/hour (straight); 13,000 sheets/hour (perfecting) |
Configuration Options | 4–10 color groups; optional perfecting device, coating module, and extended delivery |
Substrate Compatibility | Paper, cardboard, plastic films, metalized substrates; thickness: 0.03mm – 0.8mm |
Control System | Prinect CP2000 Center with axis control; SPS bus communication protocol |
Drying Interface | Reserved inter-unit and delivery-end dryer slots; compatible with external dryer integration |
Machine Weight | Approx. 33,230kg (varies by configuration) |
Key Pain Points of Traditional Drying Solutions
- Energy Inefficiency: Traditional UV systems for CD74 consume 15–18kW/hour, with 80% of energy wasted as heat – a major cost burden for high-volume, 24/7 operations.
- Curing Inconsistency: Mercury lamp systems struggle with uniform light distribution across the CD74’s 740mm width, leading to sticky prints, color deviation, and rework – especially critical for packaging and label quality.
- Substrate Damage: Excessive heat (60–85℃) warps thin films and lightweight paper, limiting the CD74’s versatility with heat-sensitive substrates like PVC and metallic films.
- Productivity Bottlenecks: Pre-heating time (8–12 minutes) and post-powder removal steps reduce actual throughput, preventing the CD74 from reaching its 18,000 sheets/hour design speed.
- High Maintenance Costs: Traditional UV lamps have a lifespan of only 1,200–1,800 hours, requiring frequent replacement; powder residue buildup on rollers and delivery units adds downtime and labor expenses.
JP UV LED Curing System: Retrofit Solution for CD74
JP’s retrofit solution is engineered around the CD74’s structural nuances and operational logic, adhering to the principle of “modular integration, plug-and-play, and zero core modifications”. Every component is tailored to leverage the press’s existing interfaces, ensuring seamless compatibility and minimal downtime.
- Customized LED Module Design (Core Component)
- Technical Parameters:
- Module Length: 760mm (precision-matched to CD74’s 740mm maximum print width)
- Wavelength Options: 365nm/385nm/395nm (optimized for UV-curable inks on packaging/commercial substrates)
- Single Module Power: 85W/cm (total power adjustable 0–100% via control system)
- Curing Speed: 0–18,000 sheets/hour (fully supports CD74’s top straight-printing speed)
- Light Uniformity: ≥97% (eliminates edge-to-center curing variations)

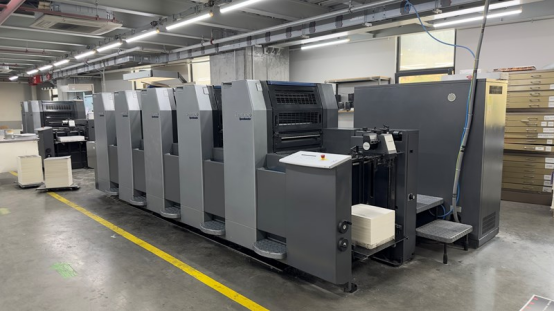

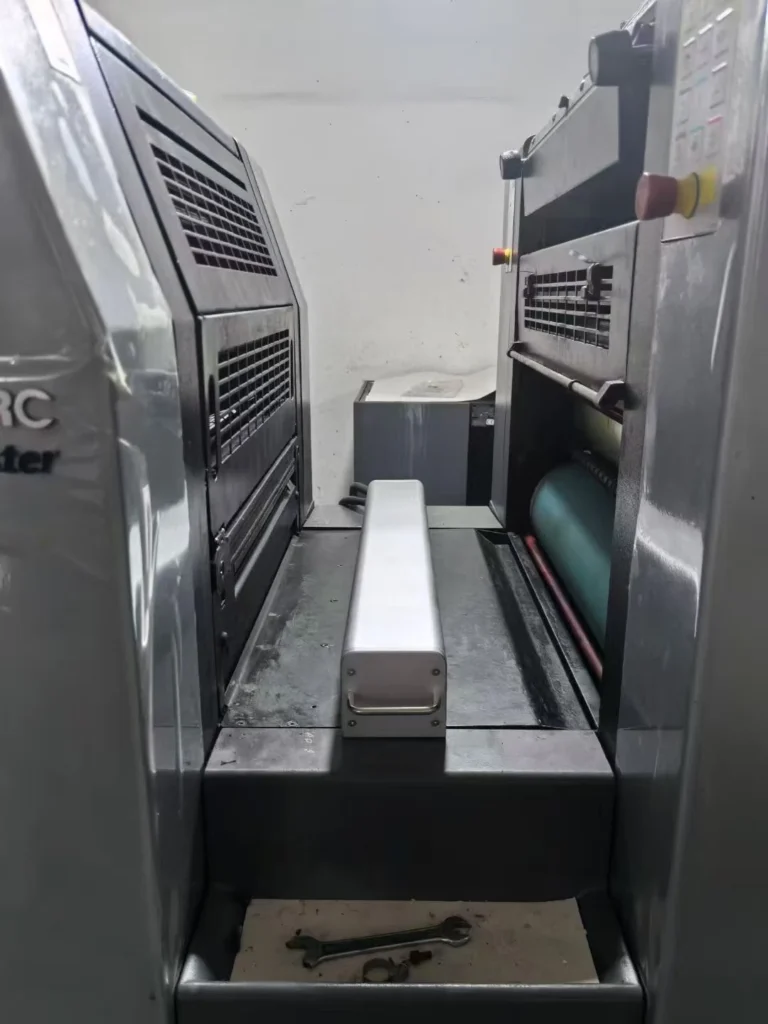

- Adaptation Logic: The LED modules fit directly into the CD74’s reserved dryer slots at the inter-unit and delivery end. Constructed with lightweight aluminum alloy (≤10kg per module), they match the press’s weight-bearing capacity and require no drilling or welding to the frame – preserving the CD74’s structural integrity.
- Modular Mounting Bracket System
- Technical Parameters:
- Material: High-strength carbon steel with anti-corrosion coating (RoHS compliant)
- Adjustment Range: Vertical ±40mm, horizontal ±25mm (compensates for minor frame deviations in older CD74 units)
- Installation Time: ≤25 minutes per module
- Adaptation Logic: The brackets utilize the CD74’s existing dryer mounting holes and positioning pins. The low-profile design ensures no interference with the press’s sheet travel path or inking units – critical for maintaining the CD74’s renowned print registration accuracy.
- Seamless Control System Integration
- Technical Parameters:
- Communication Protocol: Compatible with CD74’s Prinect CP2000 Center and SPS bus protocol
- Sync Response Time: ≤7ms (synchronizes with press speed, start/stop commands, and perfecting mode)
- Operation Interface: Integratable into the CD74’s native console or standalone 10-inch touchscreen
- Protection Level: IP54 (resistant to ink mist and cleaning solvents)

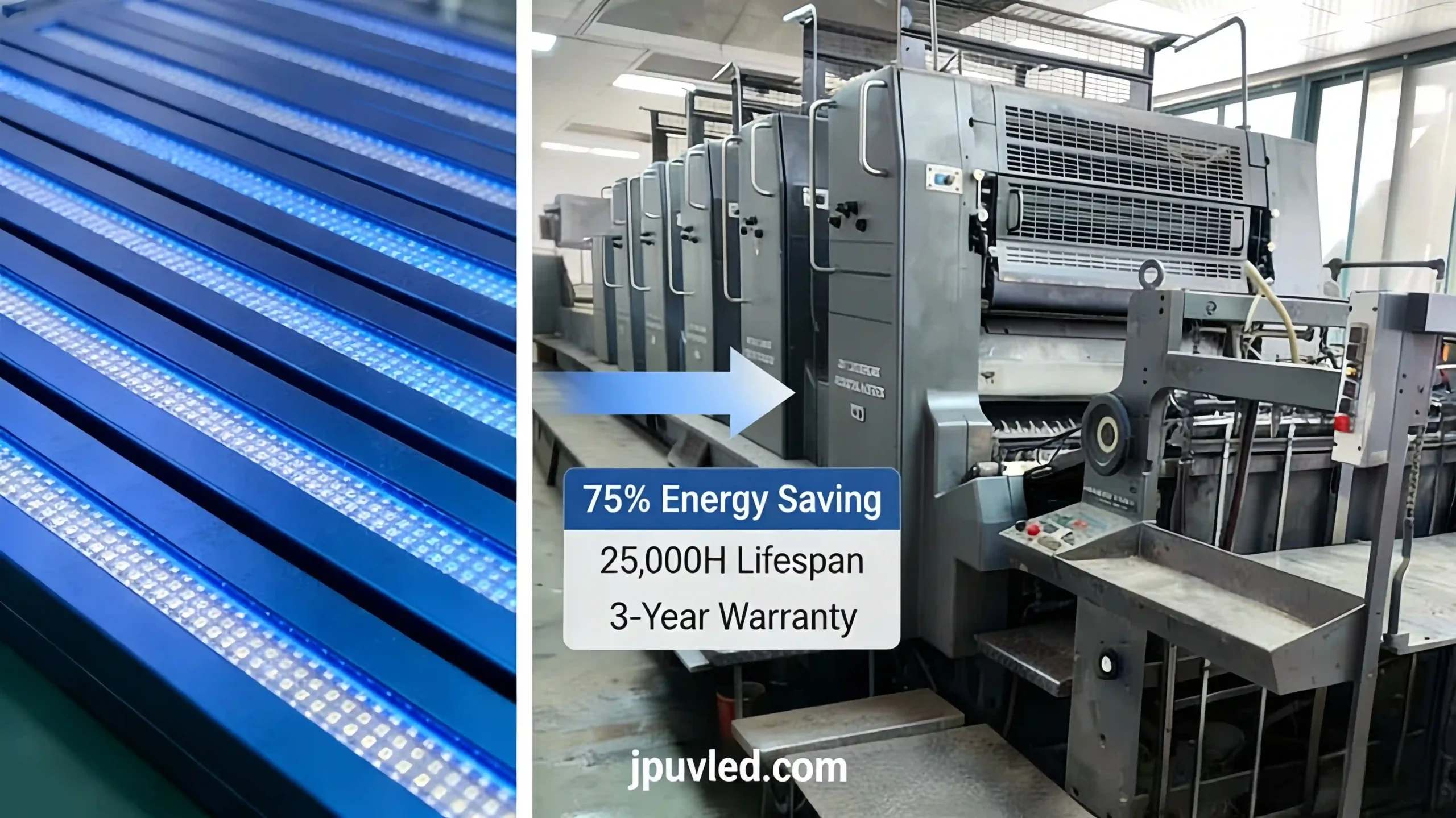

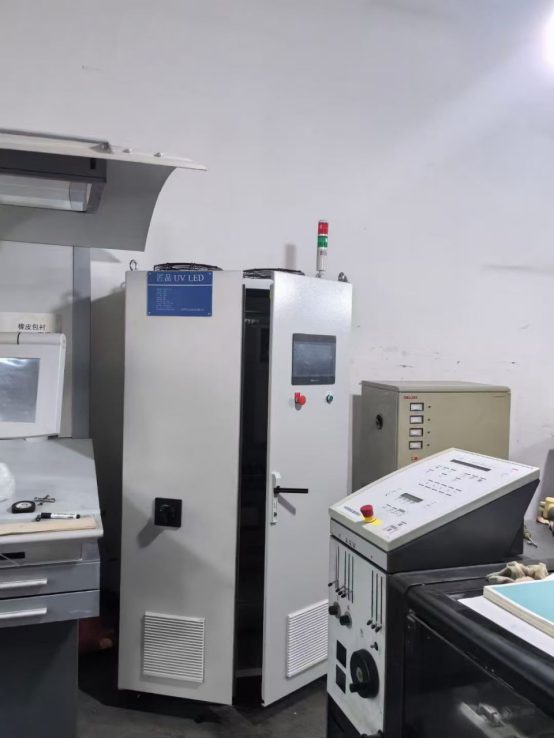

- Adaptation Logic: The control system connects to the CD74’s I/O interface via a dedicated adapter cable, enabling real-time data exchange (printing speed, substrate type, color group) to auto-adjust curing intensity. No reprogramming of the press’s original Prinect software is required, simplifying retrofit and reducing risk.
- Technical Parameters:
- Cooling Capacity: 5.5kW (supports 4–10 LED modules for full-color CD74 presses with coating units)
- Temperature Control Precision: ±1℃ (maintains LED module temperature at 24–33℃)
- Water Flow Rate: 18L/min (compatible with CD74’s auxiliary cooling interface)
- Noise Level: ≤54dB (suitable for industrial printing environments)
- Adaptation Logic: The compact chiller (L×W×H: 700mm×450mm×550mm) integrates with the CD74’s existing cooling pipeline or operates independently. It prevents LED overheating during continuous high-speed runs, extending module lifespan to 20,000+ hours – a critical advantage for the CD74’s 24/7 production capabilities.
Core Advantages of JP UV LED Retrofit for CD74
- No Major Modifications, Fast Installation: Leveraging the CD74’s reserved dryer slots and control interfaces, the entire retrofit takes 1–1.5 days (for 4–10 color units). No changes to the press’s inking, registration, or transmission systems – minimizing downtime for high-demand printing operations.
- 32% Energy Savings: Compared to traditional UV systems, the JP UV LED Curing Systemreduces the CD74’s power consumption by 32% (from 16kW/hour to 10.9kW/hour), cutting monthly electricity costs significantly for long-run production.
- Superior Curing Quality: With 97% light uniformity, the LED UV Curing Systemeliminates sticky prints and color deviation, while its cold UV light (substrate temperature rise ≤12℃) preserves heat-sensitive substrates like plastic films and thin paper – unlocking the CD74’s full substrate versatility.
- Maximized Productivity: Instant on/off (no pre-heating) and elimination of powder spraying/removal steps allow the CD74 to run at its full 18,000 sheets/hour speed. Print jobs can be stacked immediately, boosting actual throughput by 30% and enabling 24-hour order fulfillment.
- Compliance & Low Maintenance: The JP UV LED Curing Systemmeets EU REACH/RoHS standards, making it ideal for food packaging printing. Paired with the integrated water chilling system, it extends the CD74’s maintenance interval from 1,800 hours to 12,000 hours, reducing maintenance costs by 55%.
- Press-Specific Customization: As a Guangzhou JP UV LED Curing Systemmanufacturer, we tailor solutions to your CD74 configuration – whether it’s a C-format commercial press, F-format packaging unit, or perfecting model with a coating module, ensuring 100% compatibility.
Technical Parameter Comparison (Before & After Retrofit)
Index | Heidelberg CD74 with Traditional UV System | Heidelberg CD74 with JP UV LED Curing System |
Energy Consumption | 16kW/hour | 10.9kW/hour (32% savings) |
Curing Uniformity | ±18% | ±3% |
Pre-heating Time | 8–12 minutes | 0 minutes (instant start) |
Substrate Temperature Rise | 60–85℃ | ≤12℃ |
Maintenance Interval | 1,800 hours | 12,000 hours |
Compatible Substrates | Paper, thick cardboard | Paper, cardboard, plastic films, metalized substrates (0.03–0.8mm) |
Actual Throughput | 12,000–14,000 sheets/hour | 18,000 sheets/hour (full design speed) |
Compliance | Basic UV safety standards | EU REACH/RoHS certified |
Why Choose JP as Your CD74 Retrofit Partner?
As a leading China UV Curing System manufacturer with 10+ years of experience, JP has completed over 280 Heidelberg CD74 retrofit cases across Europe, North America, and Southeast Asia. Our competitive advantages include:
- Deep Press Expertise: We understand the CD74’s structural nuances – from its Prinect CP2000 control protocol to its dryer slot dimensions and sheet travel path – ensuring zero operational conflicts post-retrofit.
- Localized Support: 24/7 technical service and spare parts supply in key markets; on-site troubleshooting within 48 hours for urgent production issues.
- Cost-Effective Customization: Unlike generic UV Curing Systemsuppliers, we tailor LED module length, power output, and control logic to your CD74’s specific format (C/F) and configuration (color groups, perfecting/coating).
- Proven Results: Our JP UV LED Curing Systemhas helped CD74 users reduce operational costs by 28–35% and increase order capacity by 30% on average – verified by long-term client partnerships.
Ready to Upgrade Your Heidelberg CD74?
Transform your Heidelberg Speedmaster CD74 offset press with the JP UV LED Curing System – unlock its full 18,000 sheets/hour potential, cut energy costs, and elevate print quality without major modifications. As a trusted China UV LED Curing System manufacturer, we’re committed to delivering solutions that drive your printing business forward.
Please contact us to get a free assessment and custom retrofit quote, or contact our technical team for a detailed product demo tailored to your CD74 configuration.
