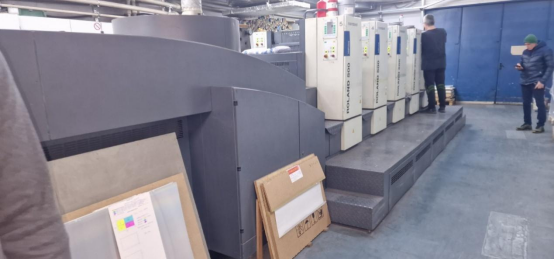

JP UV LED Curing System: Retrofit Solution for Roland 500

JP’s retrofit solution is engineered around the Roland 500’s unique structural nuances – particularly its flat sheet travel design and modular configuration – adhering to the principle of “modular integration, plug-and-play, and zero core modifications”. Every component is tailored to leverage the press’s existing interfaces, ensuring seamless compatibility and minimal downtime.

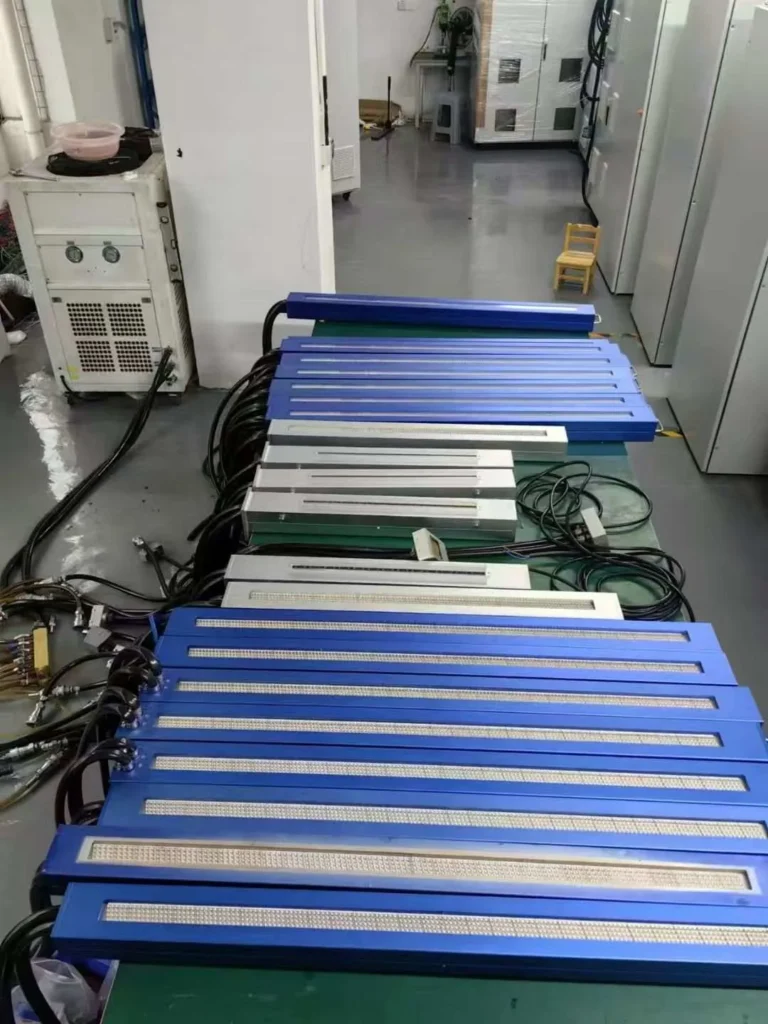

1. Customized LED Module Design (Core Component)

Technical Parameters:

Module Length: 760mm (precision-matched to Roland 500’s 740mm maximum print width)

Wavelength Options: 365nm/385nm/395nm (optimized for UV-curable inks on packaging, commercial, and specialty substrates)

Single Module Power: 82W/cm (total power adjustable 0–100% via control system)

Curing Speed: 0–18,000 sheets/hour (fully supports the Roland 500’s top straight-printing speed)

Light Uniformity: ≥97% (eliminates edge-to-center curing variations)

Adaptation Logic: The LED modules fit directly into the Roland 500’s reserved dryer slots at the inter-unit and delivery end. Constructed with lightweight aluminum alloy (≤9.5kg per module), they match the press’s weight-bearing capacity and require no drilling or welding to the frame – preserving the Roland 500’s structural integrity and flat sheet travel advantage.

2. Modular Mounting Bracket System

Technical Parameters:

Material: High-strength carbon steel with anti-corrosion coating (RoHS compliant)

Adjustment Range: Vertical ±35mm, horizontal ±22mm (compensates for minor frame deviations in older Roland 500 units)

Installation Time: ≤22 minutes per module

Adaptation Logic: The brackets utilize the Roland 500’s existing dryer mounting holes and positioning pins. The low-profile design ensures no interference with the press’s sheet travel path or inline finishing modules – critical for maintaining the Roland 500’s exceptional print registration accuracy.

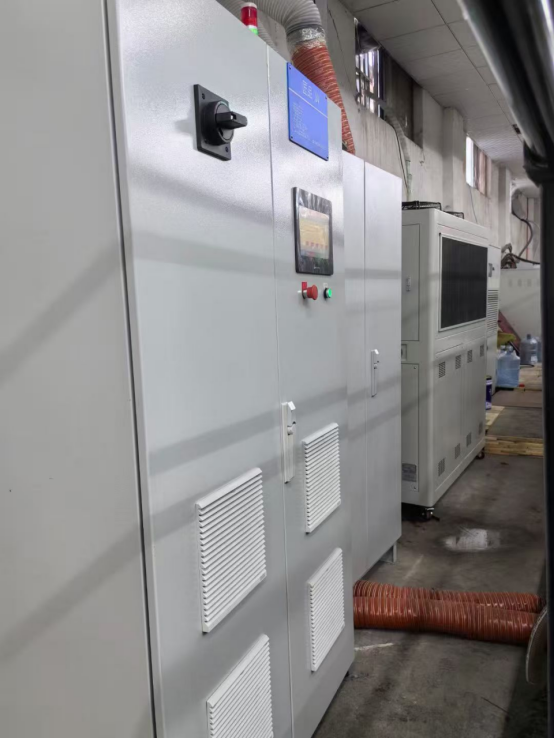

3. Seamless Control System Integration

Technical Parameters:

Communication Protocol: Compatible with Roland 500’s SPS bus and PLC control system

Sync Response Time: ≤6ms (synchronizes with press speed, start/stop commands, and perfecting/coating module operations)

Operation Interface: Integratable into the Roland 500’s native control panel or standalone 9-inch touchscreen

Protection Level: IP54 (resistant to ink mist and cleaning solvents in industrial printing environments)

Adaptation Logic: The control system connects to the Roland 500’s I/O interface via a dedicated adapter cable, enabling real-time data exchange (printing speed, substrate type, color group) to auto-adjust curing intensity. No reprogramming of the press’s original control software is required, simplifying retrofit and reducing operational risk.

4. Integrated Water Chilling System

Technical Parameters:

Cooling Capacity: 5kW (supports 4–8 LED modules for full-color Roland 500 presses with coating units)

Temperature Control Precision: ±1℃ (maintains LED module temperature at 25–34℃)

Water Flow Rate: 16L/min (compatible with Roland 500’s auxiliary cooling interface)

Noise Level: ≤53dB (suitable for industrial printing facilities)

Adaptation Logic: The compact chiller (L×W×H: 680mm×420mm×530mm) integrates with the Roland 500’s existing cooling pipeline or operates independently. It prevents LED overheating during continuous high-speed runs, extending module lifespan to 20,000+ hours – a critical advantage for the Roland 500’s 24/7 production capabilities.

Core Advantages of JP UV LED Retrofit for Roland 500

No Major Modifications, Fast Installation: Leveraging the Roland 500’s reserved dryer slots and control interfaces, the entire retrofit takes 1–1.5 days (for 4–8 color units). No changes to the press’s inking, registration, or transmission systems – minimizing downtime for high-demand printing operations.

31% Energy Savings: Compared to traditional UV systems, the JP UV LED Curing System reduces the Roland 500’s power consumption by 31% (from 15.5kW/hour to 10.7kW/hour), cutting monthly electricity costs significantly for long-run production.

Superior Curing Quality: With 97% light uniformity, the LED UV Curing System eliminates sticky prints and color deviation, while its cold UV light (substrate temperature rise ≤11℃) preserves heat-sensitive substrates like thin films and PVC – unlocking the Roland 500’s full substrate versatility .

Maximized Productivity: Instant on/off (no pre-heating) and elimination of powder spraying/removal steps allow the Roland 500 to run at its full 18,000 sheets/hour speed. Print jobs can be stacked immediately, boosting actual throughput by 29% and enabling faster order fulfillment.

Compliance & Low Maintenance: The JP UV LED Curing System meets EU REACH/RoHS standards, making it ideal for food packaging and consumer product printing. Paired with the integrated water chilling system, it extends the Roland 500’s maintenance interval from 1,600 hours to 11,000 hours, reducing maintenance costs by 52%.

Press-Specific Customization: As a Guangzhou JP UV LED Curing System manufacturer, we tailor solutions to your Roland 500 configuration – whether it’s a standard 4-color commercial press, 8-color packaging unit, or model with inline foiling/coating, ensuring 100% compatibility.
