Komori Lithrone 26 UV LED Retrofit: The Ultimate Guide to 75% Energy Savings and Production Efficiency
Komori Lithrone 26 UV LED Retrofit | JP UV LED Curing Systems
Upgrade your Komori L-26 offset press with advanced JP UV LED curing. Achieve 75% energy savings, eliminate heat distortion, and boost throughput to 16,500 sph. Complete ROI and technical guide.
In the competitive landscape of the 2025 printing industry, staying profitable requires a shift from legacy mercury lamps to high-efficiency UV LED retrofit solutions. For owners of the Komori Lithrone 26 (L-26) and Lithrone G26, integrating a state-of-the-art curing system is the most effective way to revitalize existing equipment, reduce operational costs, and access high-margin packaging markets.
This comprehensive guide explores the technical advantages, installation process, and massive Return on Investment (ROI) of upgrading your Komori press with the JP UV LED Curing System.
Why Retrofit Your Komori Lithrone 26 with UV LED?

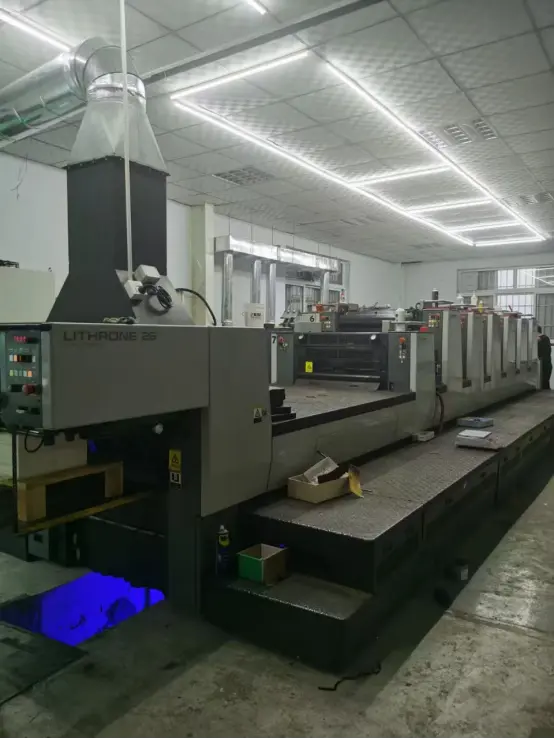

The Komori L-26 is a precision workhorse known for its 16,500 sph speed and stability. However, traditional mercury vapor lamps create significant bottlenecks: excessive heat emission, high power consumption, and frequent maintenance.
- Massive Energy Efficiency
The JP UV LED system utilizes premium Seoul and LG high-intensity chips, allowing you to save up to 75% in power consumption compared to traditional UV systems. Unlike mercury lamps that must stay on during standby, LED technology offers Instant On/Off capability, consuming energy only when a sheet is actually passing through the curing zone.
- Cold Curing Source for Heat-Sensitive Substrates
Legacy UV systems radiate 80% of their energy as infrared heat, often causing thin films (0.04 mm) and plastics (PVC/PET) to warp or shrink. Our water-cooled UV LED
maintains a surface temperature below 45°C, ensuring perfect registration and dimensional integrity for specialty packaging and labels.
- Extended Lifespan & Zero Maintenance
Mercury bulbs degrade after 1,000–2,000 hours. In contrast, the JP UV LED lamp head features a lifespan of over 25,000 hours with minimal light decay. This eliminates the hidden costs of bulb replacements and press downtime.
Technical Comparison: UV LED vs. Mercury Vapor Lamps
Feature | Conventional Mercury UV | JP UV LED Retrofit System |
Power Savings | Baseline | 70% – 80% Reduction 2 |
Heat Output | High (Requires heavy cooling) | Low (Cold light source) 13 |
Lifespan | 1,000 – 2,000 Hours | 25,000+ Hours 5 |
Warm-up Time | 5 – 10 Minutes | Instant (0 Seconds) 11 |
Environment | Mercury & Ozone hazards | Eco-friendly (Zero Mercury/Ozone) 1 |
The Retrofit Process: Seamless Integration for Komori Presses
Retrofitting an offset press like the Lithrone G26 is a structured engineering process that transforms your production model without requiring a new press investment .

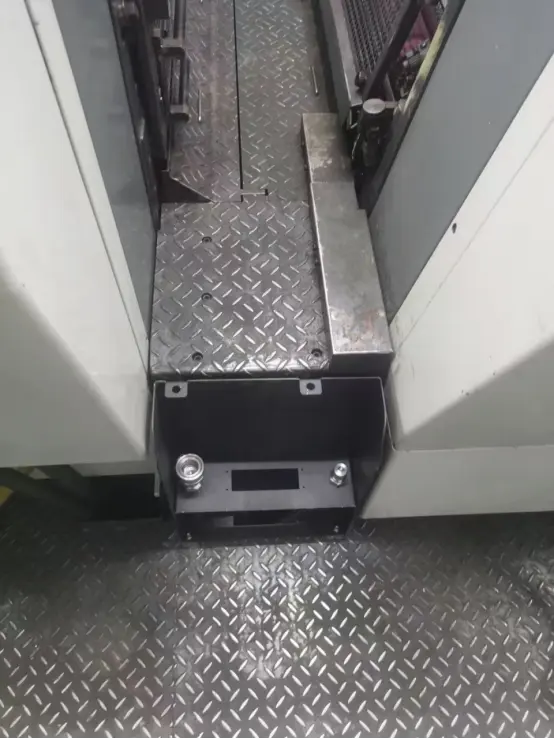

- Mechanical Mounting:Custom brackets position the LED lamp head at the optimal distance (10-15mm) for peak irradiance.

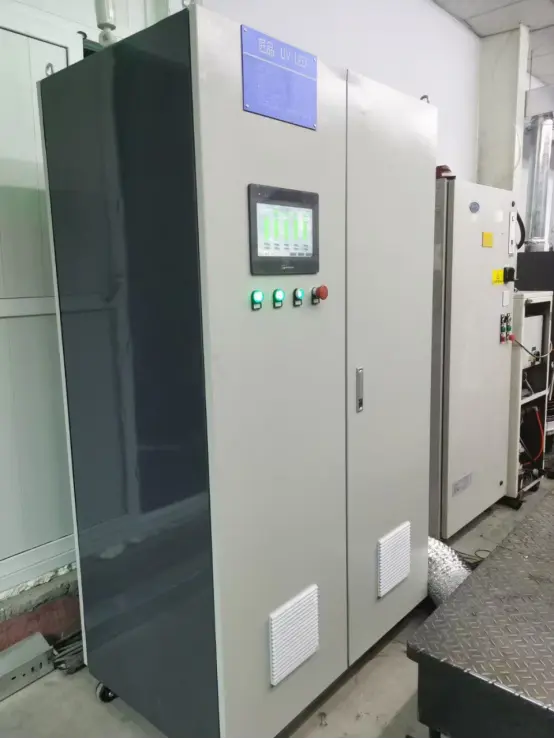

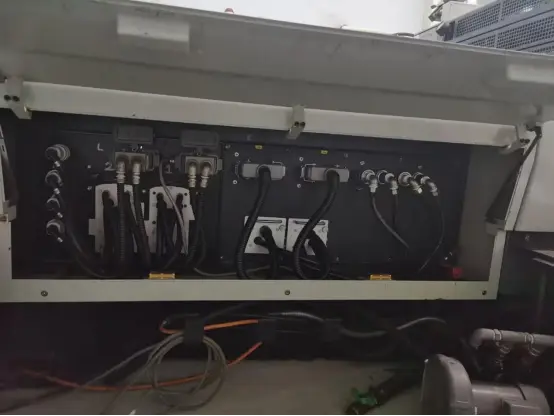

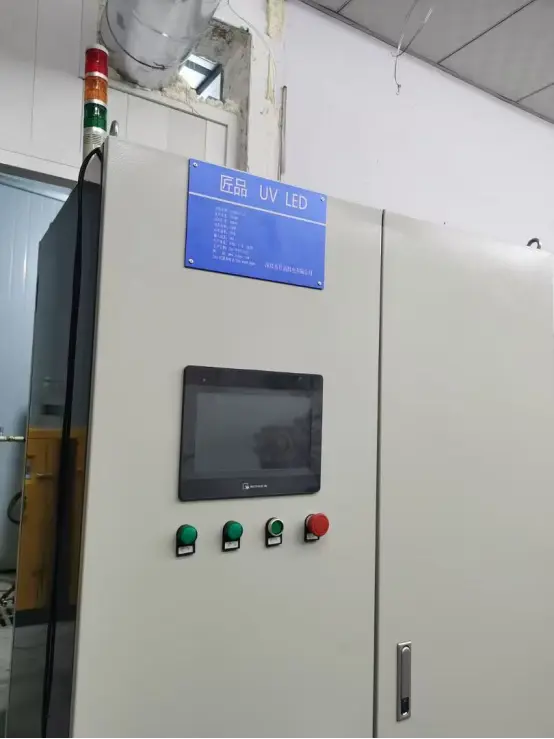

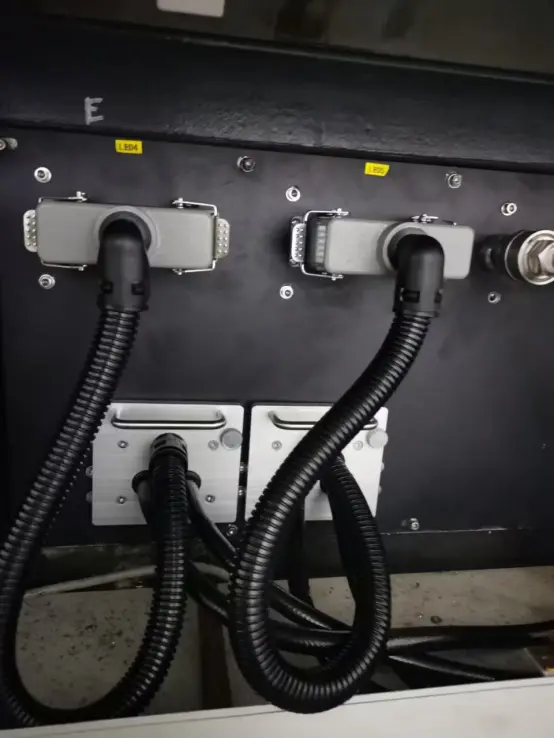

- Electrical & Syncing:Our PLC control system handshakes with the Komori KHS-AI interface, ensuring the LED power follows the press speed up to 16,500 sph.
- Consumables Upgrade:To handle the monomers in UV inks, we guide the transition to EPDM rollers and UV-compatible blankets.
Cooling System: A dedicated high-precision industrial chiller is installed to manage LED junction temperatures, ensuring stable 395nm or 385nm output.
ROI Analysis: How Quickly Does the Upgrade Pay for Itself?
For most commercial and packaging printers, the ROI period for a UV LED retrofit is between 12 to 24 months.
- Electricity Savings:By cutting power usage by 60-70%, a typical shop running two shifts can save over $15,000–$25,000 annually in utility bills.
- No Spray Powder:LED UV cures instantly, eliminating the need for anti-setoff powder. This reduces press cleaning time by 80% and improves the working environment.
- Immediate Finishing:Sheets are “dry-to-the-touch” instantly. You can move from the press straight to cutting, folding, or laminating, drastically reducing Work-in-Progress (WIP)
Global Competition: Why Choose JP UV LED?
While European brands like GEW and IST Metz offer high-power systems, JP UV LED (Shenzhen Jiangpin) provides a unique balance of modular design and cost-effectiveness. Our lamp heads are composed of integrated modules—if a single chip is damaged, you only replace that module rather than the entire lamp head, significantly lowering long-term repair costs.
Related Search Terms (FAQ)
- What is the best UV LED wavelength for Komori presses?Most offset inks are optimized for 395nm, but 385nm is preferred for low-yellowing varnishes.
- Can I print on plastic with a retrofitted Komori L-26?Yes, the cold-curing nature of LED makes it ideal for PET, PVC, and metallized cardstock.
- How to calculate ROI for UV LED printing?Combine your annual energy savings, reduced bulb replacement costs, and the 20-30% boost in production throughput.
Conclusion: Future-Proof Your Pressroom

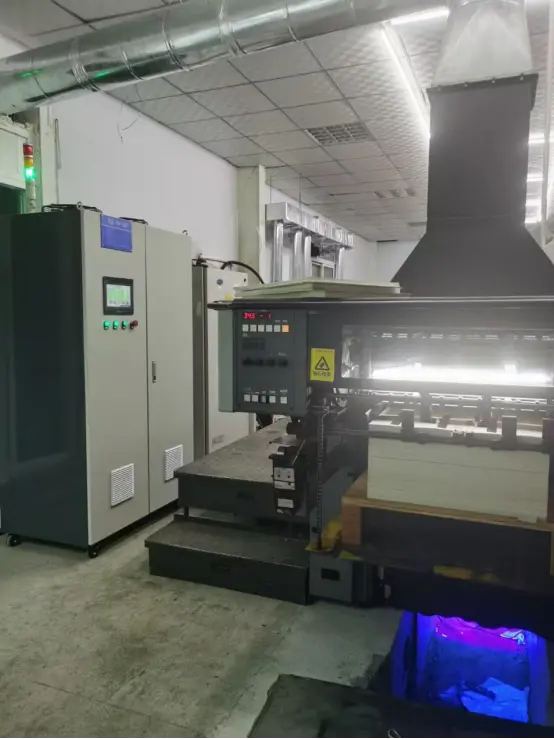

Retrofitting your Komori Lithrone 26 with the JP UV LED Curing System
is not just an equipment upgrade; it is a business transformation . By choosing sustainability and energy efficiency, you meet the demands of global brands while increasing your own bottom line.
Contact us for a customized ROI analysis and retrofit proposal for your specific press model.
